RUPALIT® Safety HF litz wires with triple insulation will revolutionise the design of your transformer.
Maximize safety minimize costs.
Technical and economic benefits:
- 50% reduction in the size of transformers
- 65% reduction in the weight of transformers
- No intermittent insulation required
- No inter-layer insulation required
- Integrated creepage and clearances distances
- No compound sealing required
- Considerably reduced winding time
Examples of application:
- HF transformers
- Switch mode power supplies
Structure:

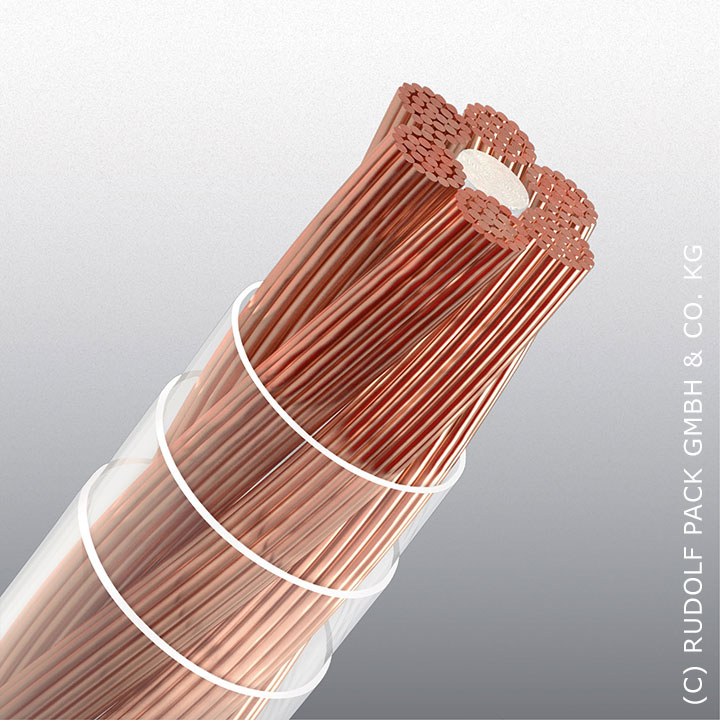

- Reinforced insulation with 3 layers of sealed foil
- Enamel-insulated copper wires (magnet wire)(0.02-1.6 mm, 13-52 AWG)
- Conductor cross-section conforming to DIN / IEC or customer requirements
Insulation material:
- Polyester foil (25), (Mylar©)
- Polyethylenenapthalat (PEN), Teonex©
- Polyimide foil (27), (Kapton©)
*
reg.-no.: 122034
DIN EN 60950-1/A12
DIN EN 60065
DIN EN 61558-1/A1
DIN EN 60601-1
Working Voltage:
max. 600 Vrms
max. 1000 Vpeak
