RUPATEX®

Reinforced Insulation for Maximum Safety

Triple-insulated fine wire for compact and highly efficient windings.

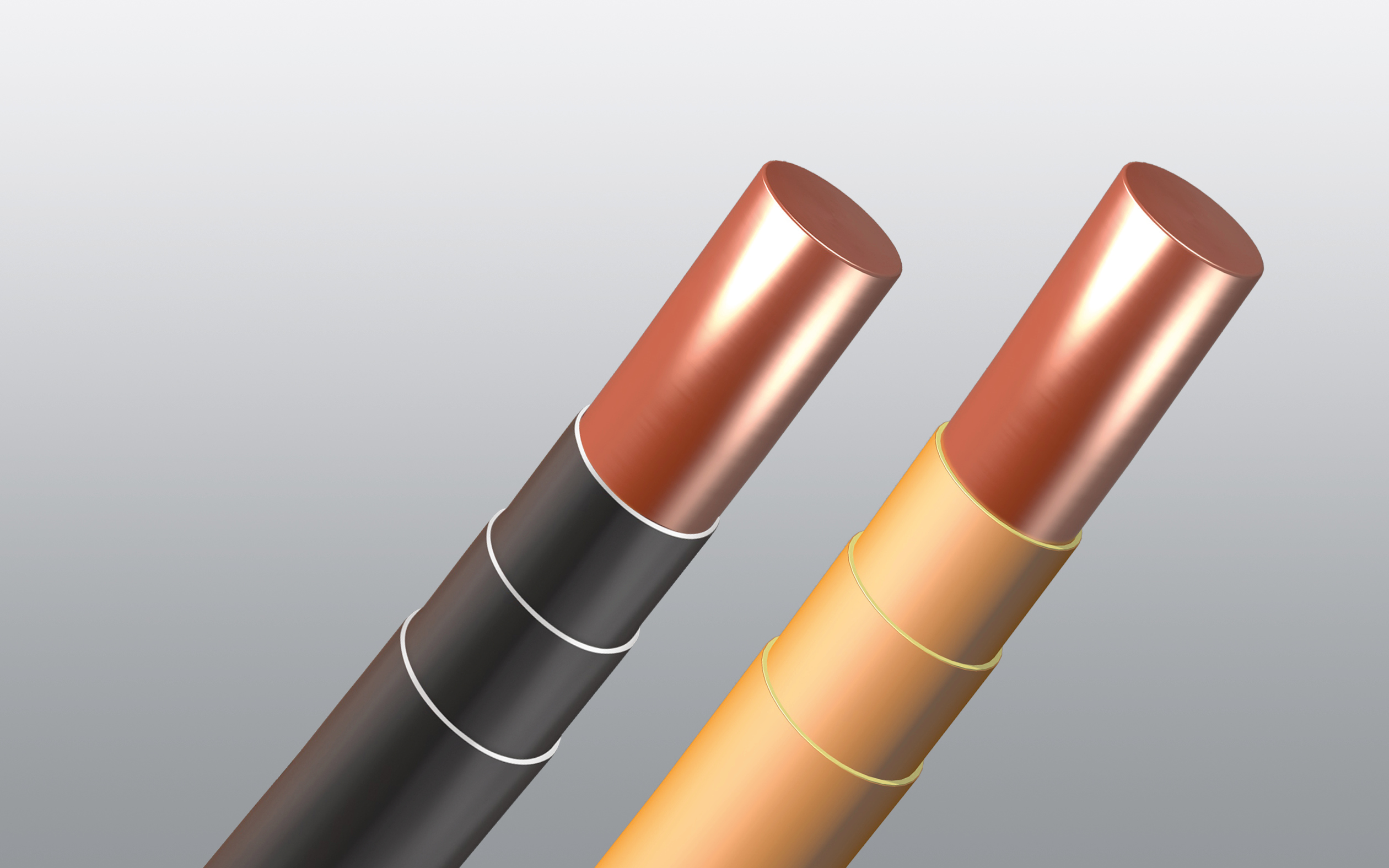

RUPATEX Runddraht mit unterschiedlicher Isolationsausführung im Vergleich

RUPATEX® combines triple-layer ETFE insulation with a stable material structure for reliable, compact windings. This reinforced insulation reduces manufacturing steps and enables highly efficient production processes. Our commitment to quality ensures the highest safety standards, as confirmed by our UL and VDE certifications, which are available for direct download below.

Download Certificates

RUPATEX® class B

RUPATEX® Class B – Triple-Insulated Copper Wire. Featuring integrated triple insulation, this wire enables the efficient construction of safety transformers without the need for additional layer insulation. It meets the most stringent safety standards while offering a compact design and ease of processing.

Integrated triple insulation
Standard-compliant safety
Efficient transformer design

Inquire now

RUPATEX® Class B combines a copper conductor with a multi-layer reinforced insulation according to IEC 62368 (IEC 60950) and IEC 61558. This allows for the realization of safety transformers, switch-mode power supplies, and medical designs in Class B without separate interlayer insulation.

Key Advantages:

Full compliance with major international standards.
Eliminates the need for separate interlayer insulation.
Significantly reduces winding time and material usage.
Enables more compact and cost-efficient transformer designs while ensuring safety distances.
Directly solderable without prior stripping.
Integrated clearance and creepage distances.
Available in small quantities and various colors.

RUPATEX® Class B combines a copper conductor with a multi-layer reinforced insulation according to IEC 62368 (IEC 60950) and IEC 61558. This allows for the realization of safety transformers, switch-mode power supplies, and medical designs in Class B without separate interlayer insulation.

Key Advantages:

Full compliance with major international standards.
Eliminates the need for separate interlayer insulation.
Significantly reduces winding time and material usage.
Enables more compact and cost-efficient transformer designs while ensuring safety distances.
Directly solderable without prior stripping.
Integrated clearance and creepage distances.
Available in small quantities and various colors.

RUPATEX® class F

RUPATEX® Class F – Triple-Insulated Copper Wire. This advanced development for higher thermal requirements enables safety-critical designs in Class F (TI 155 °C). Achieve higher power densities and temperature reserves in industrial and drive applications with the same ease of processing you expect.

Class F insulation
Higher power density
Safety and compactness

Inquire now

Class F is the next step for demanding thermal environments. Based on a more heat-resistant enamelled copper wire and a modified triple-insulation system, it enables safety-relevant designs in Class F (typically TI 155 °C). This allows for higher power densities and thermal reserves in power supplies, industrial electronics, and drive technology.

Key Advantages:

Higher permissible winding temperatures compared to Class B systems.
Compliance with established safety standards.
Eliminates additional interlayer insulation.
Faster winding processes and reduced material consumption.
Compact transformer designs with guaranteed compliance with insulation distances.
Solderable without prior stripping.
Integrated clearance and creepage distances.
Available in small quantities and various colors.

Class F is the next step for demanding thermal environments. Based on a more heat-resistant enamelled copper wire and a modified triple-insulation system, it enables safety-relevant designs in Class F (typically TI 155 °C). This allows for higher power densities and thermal reserves in power supplies, industrial electronics, and drive technology.

Key Advantages:

Higher permissible winding temperatures compared to Class B systems.
Compliance with established safety standards.
Eliminates additional interlayer insulation.
Faster winding processes and reduced material consumption.
Compact transformer designs with guaranteed compliance with insulation distances.
Solderable without prior stripping.
Integrated clearance and creepage distances.
Available in small quantities and various colors.

RUPATEX® Litz Wire

RUPATEX® – Extruded HF Litz Wires. Maximum resilience for demanding windings. Wherever standard high-frequency litz wires reach their mechanical or electrical limits, extruded litz wires offer the optimal solution.

Exceptional flexibility
High mechanical robustness
Increased dielectric strength

Inquire now

Extrusion protects the sensitive bundle of single wires from external influences and significantly improves technical parameters:

Enhanced Dielectric Strength: The sheath acts as an additional, reliable barrier against electrical breakdown. Fulfills requirements for triple-insulated litz with reinforced insulation according to DIN EN 62368-1, DIN EN 60065, DIN EN 61558, and DIN EN 60601.
Note: Our coatings achieve a breakdown voltage of 3 to 4 kV with a wall thickness of only 0.1 mm (3 layers).
High Temperature Resistance: Approved for Class F (155°C).
Outstanding Flexibility: Despite the additional layer, the litz remains extremely bendable.
Mechanical Protection: Increased resistance to abrasion and pressure.
Chemical Resistance: Protection against oils, greases, and various chemical substances.
Processability: The extruded jacket is easy to remove for subsequent contacting.
Approvals: UL (E257248) and VDE (D254).

Extrusion protects the sensitive bundle of single wires from external influences and significantly improves technical parameters:

Enhanced Dielectric Strength: The sheath acts as an additional, reliable barrier against electrical breakdown. Fulfills requirements for triple-insulated litz with reinforced insulation according to DIN EN 62368-1, DIN EN 60065, DIN EN 61558, and DIN EN 60601.
Note: Our coatings achieve a breakdown voltage of 3 to 4 kV with a wall thickness of only 0.1 mm (3 layers).
High Temperature Resistance: Approved for Class F (155°C).
Outstanding Flexibility: Despite the additional layer, the litz remains extremely bendable.
Mechanical Protection: Increased resistance to abrasion and pressure.
Chemical Resistance: Protection against oils, greases, and various chemical substances.
Processability: The extruded jacket is easy to remove for subsequent contacting.
Approvals: UL (E257248) and VDE (D254).

Nahaufnahme von aufgewickeltem Kupferdraht auf einer Spule

Immediate Delivery List

A wide selection of HF litz wires and fine wires available immediately from stock.

View immediately available products

Compact Windings, Proven Results

Process-reliable windings for toroidal transformers

For small winding radii and closed core geometries in PV and wind power systems, RUPATEX® offers a robust, easy-to-handle wire structure that remains dimensionally stable even under tensile stress.

The triple ETFE insulation reliably protects against abrasion and damage and supports uniform, efficient processing in automated winding machines.

To the Case Study

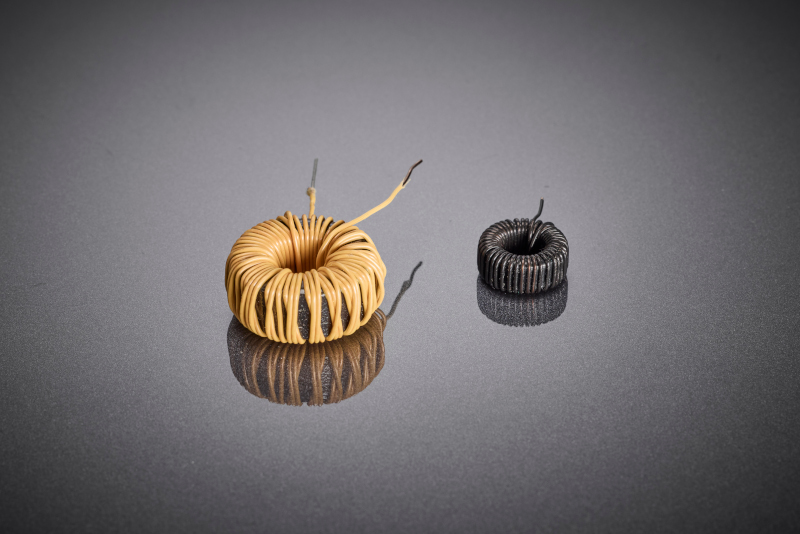

Ringkerntransformatoren unterschiedlicher Größe für Anwendungen in erneuerbaren Energiesystemen
