Enamelled Copper Wires

Consistent Quality for Every Application

Precision-engineered enamelled copper wire for sustained high-performance applications.

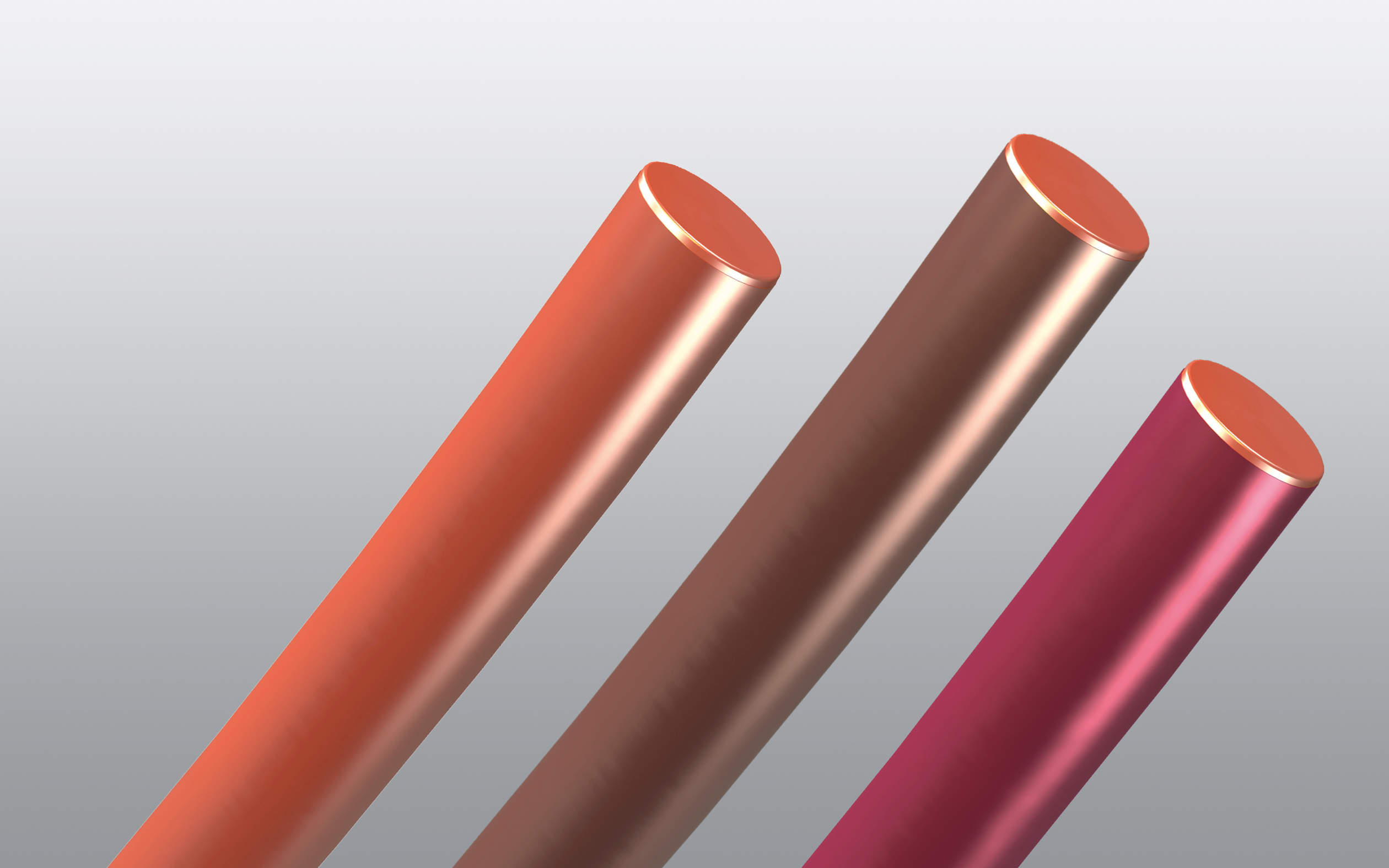

Kupferlackdraht mit unterschiedlichen Lackisolierungen in Nahaufnahme

Our enamelled copper wires combine controlled manufacturing processes with consistent material properties. Whether you require easy solderability, high temperature resistance, or specialized self-bonding properties: RUPOL®, RUPEX®, and RUTHERM® enable reliable winding processes and stable electrical characteristics. The superior quality of our wires is documented by our UL and ISO certifications, which are available for direct download below.

Download Certificates

RUPOL®

RUPOL® – Solderable Enamelled Copper Wire. This universal standard enables the finest windings with stable processes and short cycle times. Direct solderability without prior stripping reduces manufacturing steps and effectively reduces the risk of defects.

Directly solderable
High process reliability
Wide range of applications

Inquire now

RUPOL® is the universal standard according to DIN EN 6317-ff. for fine windings and litz wires in small transformers, relays, motors, and electronic assemblies. The combination of high-purity copper and temperature-resistant, solderable enamel insulation enables stable winding processes, short cycle times, and reproducible electrical values. RUPOL® can be soldered directly without prior stripping – reducing process steps and minimizing the risk of errors in production. Combined with our in-house wire drawing and consistent control of diameter and resistance, you receive a wire optimized for high-volume series production.

Key Advantages:

Eliminates separate stripping processes – direct solderability saves time and reduces risk.
High winding speeds thanks to defined lubricity and surface properties – ideal for automation.
Reproducible electrical parameters (resistance, diameter) ensure the series quality of your assemblies.

RUPOL® is the universal standard according to DIN EN 6317-ff. for fine windings and litz wires in small transformers, relays, motors, and electronic assemblies. The combination of high-purity copper and temperature-resistant, solderable enamel insulation enables stable winding processes, short cycle times, and reproducible electrical values. RUPOL® can be soldered directly without prior stripping – reducing process steps and minimizing the risk of errors in production. Combined with our in-house wire drawing and consistent control of diameter and resistance, you receive a wire optimized for high-volume series production.

Key Advantages:

Eliminates separate stripping processes – direct solderability saves time and reduces risk.
High winding speeds thanks to defined lubricity and surface properties – ideal for automation.
Reproducible electrical parameters (resistance, diameter) ensure the series quality of your assemblies.

RUPEX®

RUPEX® – High-Temperature Enamelled Copper Wire. Developed for extreme thermal loads, RUPEX® offers excellent chemical resistance in automotive and industrial environments. Ensure the continuous operation of your components even where standard enamels reach their limits.

High temperature resistance
Chemical resistance
Long-term operational stability

Inquire now

RUPEX® is designed for applications where standard enamels reach their thermal limits. The wire combines a heat-stable enamel system with exceptional chemical resistance, making it ideal for automotive coils, motors, and high-temperature environments. While RUPEX® is not solderable, it is approved for continuous operating temperatures in high temperature classes – providing an extra margin of safety in demanding designs.

Key Advantages:

Excellent resistance to oils, solvents, and cooling media.
High mechanical load capacity.
Extended service life through chemically stable insulation in harsh environments (e.g., automotive, industrial).

RUPEX® is designed for applications where standard enamels reach their thermal limits. The wire combines a heat-stable enamel system with exceptional chemical resistance, making it ideal for automotive coils, motors, and high-temperature environments. While RUPEX® is not solderable, it is approved for continuous operating temperatures in high temperature classes – providing an extra margin of safety in demanding designs.

Key Advantages:

Excellent resistance to oils, solvents, and cooling media.
High mechanical load capacity.
Extended service life through chemically stable insulation in harsh environments (e.g., automotive, industrial).

RUTHERM®

RUTHERM® – Self-Bonding Enamelled Copper Wire. Combine electrical function with mechanical fixation to realize compact windings without the need for additional resin encapsulation. RUTHERM® permanently and cleanly stabilizes your small coils and sensors for maximum precision.

Integrated self-bonding layer
Resin-free fixation
Clean winding geometries

Inquire now

RUTHERM® unites electrical function and mechanical fixation in a single product. In addition to the primary enamel layer, the wire features an additional self-bonding layer activated by heat or solvents. This allows windings to be mechanically stabilized without additional impregnation or resin potting – a significant advantage for miniature coils, sensors, and compact assemblies.

Key Advantages:

Eliminates separate potting or impregnation processes – fewer production steps.
Highly compact, precise windings without excess resin – ideal for miniature designs.
Improved reproducibility and clean coil geometries.

RUTHERM® unites electrical function and mechanical fixation in a single product. In addition to the primary enamel layer, the wire features an additional self-bonding layer activated by heat or solvents. This allows windings to be mechanically stabilized without additional impregnation or resin potting – a significant advantage for miniature coils, sensors, and compact assemblies.

Key Advantages:

Eliminates separate potting or impregnation processes – fewer production steps.
Highly compact, precise windings without excess resin – ideal for miniature designs.
Improved reproducibility and clean coil geometries.

Nahaufnahme von aufgewickeltem Kupferdraht auf einer Spule

Immediate Delivery List

A wide selection of HF litz wires and fine wires available immediately from stock.

View immediately available products

Proven Performance

Enamelled Copper Wire in Practice

Heating conductors for dynamic applications in vehicle interiors

For flexible heating applications such as seat heaters, heated steering wheels, or armrests, RUPEX offers stable conductivity and high resistance to bending fatigue. Even under dynamic movement and fluctuating temperatures, the heating conductor remains reliable, ensuring uniform and long-lasting heat dissipation.

To the Case Study

Dedicated to Providing Excellent Service

Do you require customized sampling?

Do you have questions regarding solderability, temperature classes, or enamel types?

Would you like to coordinate technical specifications or compare different variants?

Are you looking for a tailored solution or need support with product selection?
